Prekės aprašymas

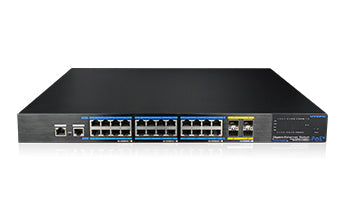

| Modelis | UTP7624GE-L3 |
| Downstream prievadai | 24* 10/100/1000Base-T RJ45 |
| Uplink prievadai | 4*1000/10GBase-X SFP+ |
| Tinklo standartai | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3Z, IEEE802.3X, IEEE 802.1Q IEEE 802.1p IEEE 802.3ad , IEEE 802.1D, IEEE 802.1X |
| Perjungimo pajėgumas | 128Gbps |
| Paketų perkėlimo greitis | 96Mpps |
| Perdavimo būdai | Store and Forward |
| Paketų buferis | 12M |
| MAC Adresų lentelė | 16K |
| Įtampos atsparumas | 6KV Execute: IEC61000-4-5 |
| ESD atsparumas | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute: IEC61000-4-2 | |
| Įvesties įtampa | 100~240VAC 50/60Hz dule power module(2*12V60W) |
| Energijos suvartojimas | ＜30W |
| Darbinė temperatūra | -10-50℃ |
| Laikymo temperatūra | -40-85℃ |
| Atsparumas drėgmei | 5%-95% |
| Matmenys（L×W×H） | 442mm×320mm×44.5mm |
| Svoris | 4.35kg |
| Certifikatai | CE, FCC, ROHS |
| Programinės įrangos funkcijos | |
| Prievadų valdymas | Support port enabling and disabling |
| Support port speed settings | |
| Support port full-duplex mode | |
| Support IEEE802.3x flow control | |
| Support Jumbo Frame | |
| Support port name modification | |
| VLAN | Support of 4K VLAN |
| Support 802.1Q VLAN protocol | |
| Support QINQ | |
| Support GVRP | |
| Support VLAN based on port\protocol\MAC | |
| Paslaugų kokybė | Support COS classification base on 802.1p |
| Support QoS base on DSCP | |
| Support 8 priority queues | |
| Queue scheduling: SP, WRR, SP+WRR | |
| Support 802.1p CoS/DSCP priority | |
| Peržiūrų valdymas | Support SNMPV1 / V2 / V3 protocols |
| Support IGMP Snooping | |
| Support MLD-snooping | |
| Apsaugos funkcijos | Supports IP, MAC, port, VLAN binding combinations |
| Support MAC address auto-learning, aging and filtration | |
| Support port isolation, port speed limit | |
| Support STP \ RSTP \MSTP，Fast-Ring | |
| Support 5 groups of link aggregation | |
| Support LLDP ,Smart-Link ,DLDP | |
| Support 802.1X | |
| ACL | Support base on source-MAC, target-MAC, protocal-classify, source-IP, target-IP, L4 ports-number |
| Support time-range management | |
| Sistemos valdymas | Web-based GUI and CLI management |
| Support FTP / TFTP / HTTP load upgrade | |
| Support traffic statistics | |
| Support MAC address table query | |
| Support IP address, DNS server modifications | |
| Support user name and password modification | |
| Support for history, log management | |
| Support System Configuration Backup | |
| Support to recover the default factory settings on reboot | |
| L3 valdymas | Support IPV4 static route setup |
| Support RIP V1/2 on IPV4 | |
| Support OSPF V1/V2 | |
| Support ISIS on IPV4 | |
| Support BGP on IPV4 | |
| Support static ARP Add,delete,burn-in time sutup/check | |
| Support static NDAdd,delete,burn-in time sutup/check | |
| Support VRRP V1/2/3 virtual redundant route protocol | |
| Support group-brocasting PIM,IGMP V1/V2/V3,MLD(IPV4) | |
| Support DHCP client,server | |
| Support relay repeater,DHCP snooping | |
| Support duplex transfer check mechanism | |
