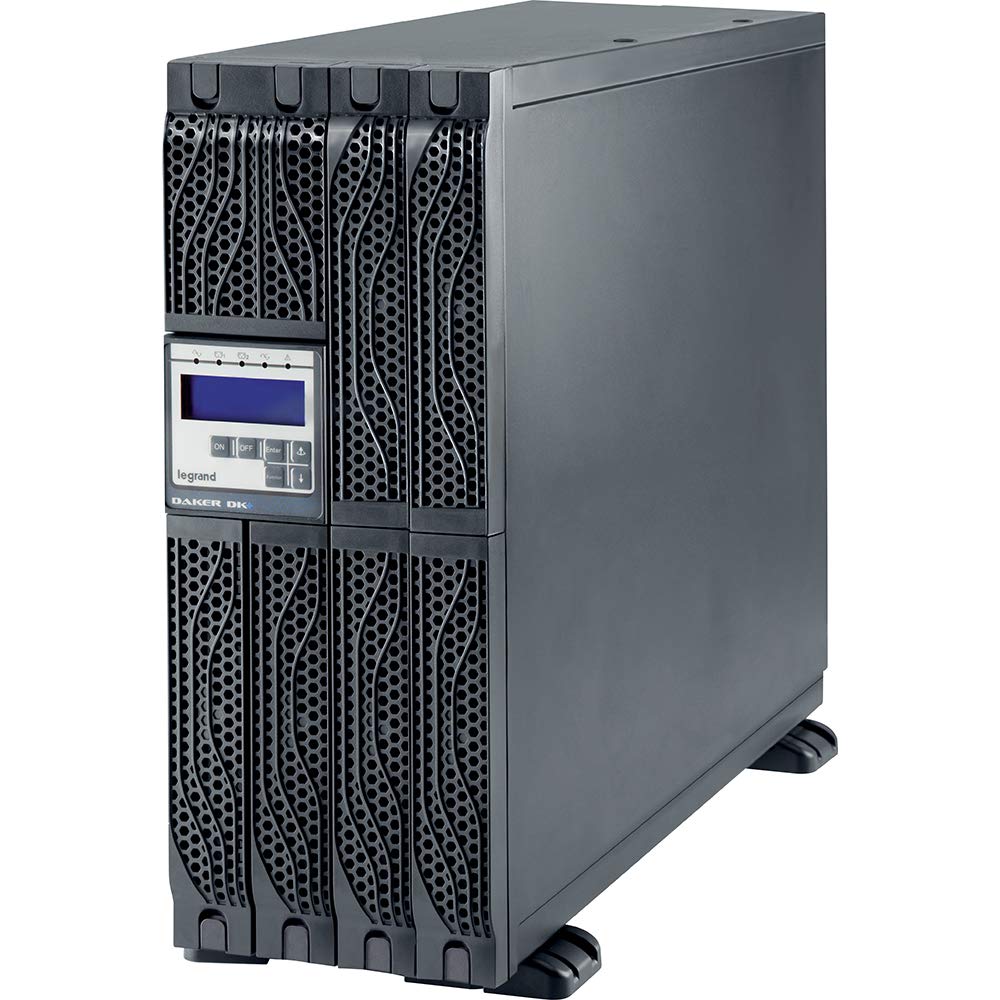

LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)
Padidinti Padidinti (mobiliesiems)
LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)

LEGRAND UPS DAKER DK PLUS 310174 (Rack/Tower, LCD, 6000VA/6000W)

Prekės kodas-L310174
Kaina:
€2.919,00
Likutis sandėlyje:
Turime

Prekės aprašymas

  • Bendrieji duomenys
  • Nominal power (VA)6000
  • Active power (W)6000
  • TechnologijaOn-Line Double Conversion VFI-SS-111
  • Bangos formaSinusoidal
  • UPS architectureConvertible tower and rack 19"
  • Surge Rating1900
  • ECO Mode efficiency98%
  • Įvesties įtampa230 V
  • Įvesties dažnis50-60 Hz ±5% Autosensing
  • Įėjimo įtampos diapazonas170V - 288V on full load
  • THD Input current< 3%
  • Input power factor> 0.99
  • Išėjimo įtampa230V ± 1%
  • Output frequency (nominal)50/60 Hz (settable from LCD panel) ± 0.1%
  • Crest Factor1:3
  • THD Output voltageLinear load 2%, Nonlinear load 5%
  • Output Voltage Tolerance±1%
  • Uptime ExpansionNo
  • Baterijų skaičius20
  • Battery series Type/Voltage12V 5Ah
  • Uptime with 80% load (min)4
  • Display and SignalsFour buttons and four LEDs to monitor UPS status in real time
  • Ryšio prievadaiRS232 serial ports, USB
  • Remote ManagementAvailable
  • Network interface slotSNMP
  • Measurements H x L x D (mm)440 x 176 (4U) x 680
  • Battery Cabinet Measurements H x L x D (mm)440 x 132 (3U) x 680
  • Svoris (kg)60
  • Operating temperature (°C)0 ÷ 40 °C
  • Degree of protectionIP20
  • Relative humidity (%)0-95% non-condensing
  • Noise level at 1 m (dBA)< 50
  • Heat Loss (BTU/h)1300
  • SertifikataiEN 62040-1, EN 62040-2, EN 62040-3
