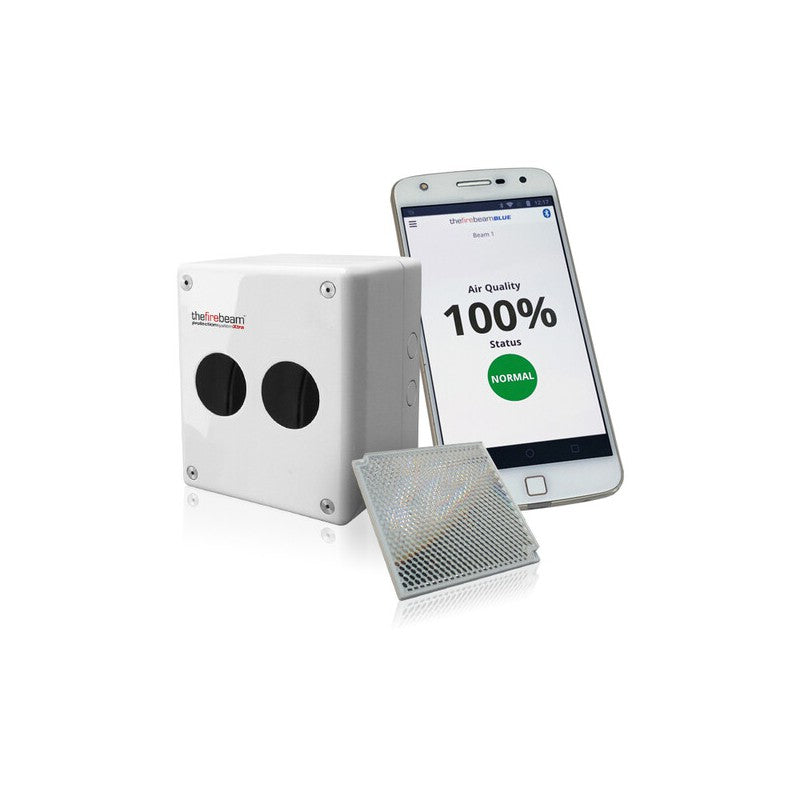

Linijinis dūmų jutiklis FireBeam Blue (7-70 m., Bluetooth)
Padidinti Padidinti (mobiliesiems)
Linijinis dūmų jutiklis FireBeam Blue (7-70 m., Bluetooth)

Linijinis dūmų jutiklis FireBeam Blue (7-70 m., Bluetooth)

Prekės kodas-PSFBBLUE
Kaina:
€458,30
Likutis sandėlyje:
Turime

Prekės aprašymas

  • Pagrindinis
  • Įtampa12 to 30 Vdc normal
  • Tiekimo srovė5.5mA in all operational states
  • Temperatūra-10°C to +55°C
  • Drėgmė10 to 95% RH Non-condensing
  • ApsaugaIP65 when suitably mounted and terminated
  • Optinis bangos ilgis870nm
  • Maksimalus kampinis išlyginimas±5°
  • Didžiausias kampinis poslinkis(static not auto-aligning)
  • Signalizacijos jautrumo lygiai25% (1.25dB) to 50% (3dB) in 1% (0.05dB) increments (default 35% (1.87dB))
  • SignalizacijaObscuration drops to below pre-defined sensitivity level. Time to Alarm Condition adjustable between 2 to 30 seconds in 1 second increments (default 10 seconds)
  • Signalizacijos indikacijaApp Status - FIRE, Head Red Flashing LED, Alarm Relay Change Over (CO) Contact, Rating 2A @ 30 VDC
  • Test / Reset funkcijosBeam test function with App, Alarm latching / auto-reset selectable (default auto-reset), Alarm reset in latching mode with App reset function, removing power for >5 seconds or momentarily apply >5 VDC to reset connections in Beam Head
  • Gedimų jautrumo lygis<4%
  • GedimaiObscuration drops to below the fault sensitivity level within 1 second, Power Down or Supply Voltage < 9 VDC, Commissioning modes, Pre-Alignment and Auto-Alignment, Beam turned off during Beam Maintenance, Time to Fault Condition adjustable, 2 to 60 seconds in 1 second increments (default 10 seconds)
  • Gedimo indikacijaApp Status - FAULT, Head Yellow Flashing LED 1 Second, Fault Relay Change Over (CO) Contact Rating 2A @ 30 VDC
  • Normali BūklėObscuration level is above the Alarm sensitivity level, App Status - NORMAL, Programmable on/off, Head Green Flashing LED, Programmable on/off
  • Automatinis išlygiavimas / kompensavimasAuto-align during normal operation if obscuration drops below 90% for the duration of the align time set (doesn't affect normal operating mode), Beam Contamination Compensation 4 hour monitoring. Compensation data available in the App
