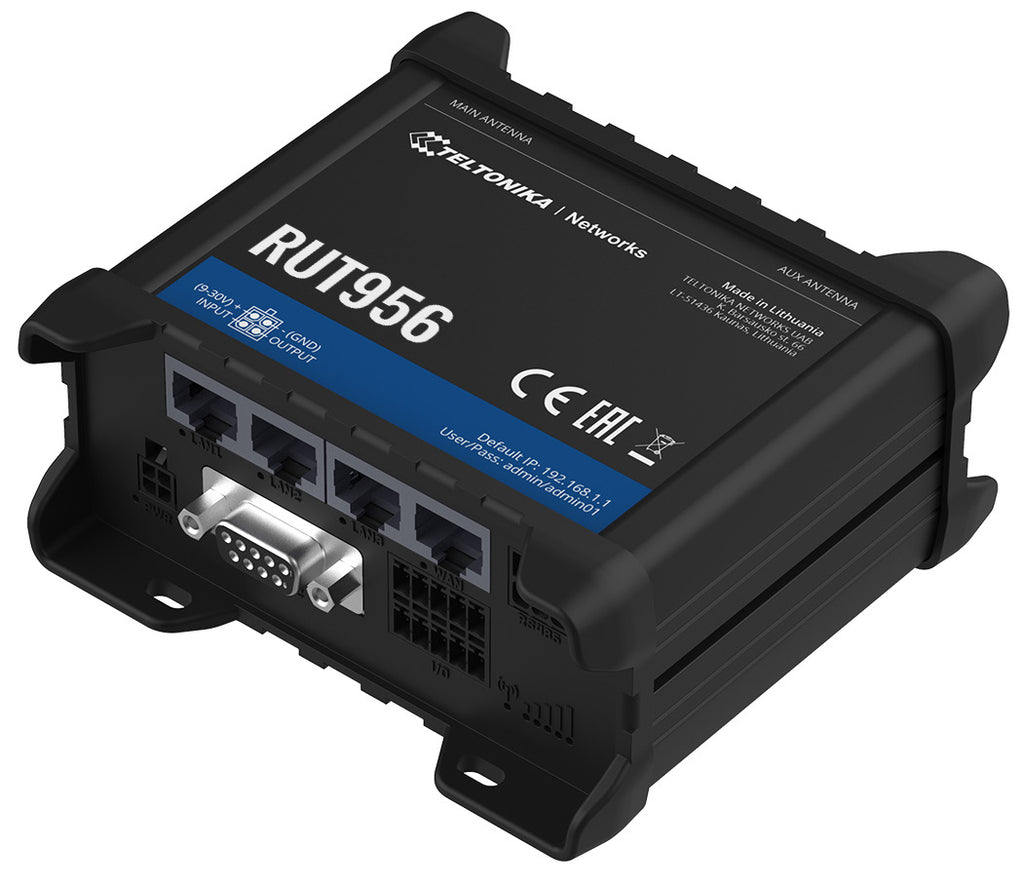

Modemas Teltonika LTE RUT 956 LTE(4G)
Padidinti Padidinti (mobiliesiems)
Modemas Teltonika LTE RUT 956 LTE(4G)

Modemas Teltonika LTE RUT 956 LTE(4G)

Prekės kodas-LTRUT956
Kaina:
€305,53
Likutis sandėlyje:
Turime

Prekės aprašymas

  • Pagrindinis
  • StatusasSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
  • USSDSupports sending and reading Unstructured Supplementary Service Data messages
  • Juodasis/baltasis sąrašasOperator black/white list
  • Multiple PDNPossibility to use different PDNs for multiple network access and services
  • Grupės valdymasBand lock, Used band status display
  • APNAuto APN
  • TiltasDirect connection (bridge) between mobile ISP and device on LAN
  • PerleidimasRouter assigns its mobile WAN IP address to another device on LAN
  • Belaidžio ryšio režimasIEEE 802.11b/g/n, Access Point (AP), Station (STA)
  • Wifi apsaugaWPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
  • SSID/ESSIDSSID stealth mode and access control based on MAC address
  • WiFi naudojotaiUp to 100 simultaneous connections
  • Belaidžio ryšio prieeigaCaptive portal (Hotspot), internal/external Radius server, built in customizable landing page
  • WAN1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • LAN3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
  • MaršrutasStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
  • Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
  • VoIP praėjimo paramaH.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
  • Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
  • UgniasienėPort forward, traffic rules, custom rules
  • DHCPStatic and dynamic IP allocation, DHCP Relay, Relayd
  • QoS / Smart Queue Management (SQM)Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
  • DDNSSupported >25 service providers, others can be configured manually
  • Tinklo atsarginės kopijosWiFi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
  • Apkrovos balansavimasBalance Internet traffic over multiple WAN connections
  • HotspotInternal/external Radius server, captive portal, built in customizable landing page
  • SSHFSPossibility to mount remote file system via SSH protocol
  • AutentifikavimasPre-shared key, digital certificates, X.509 certificates
  • UgniasienėPre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
  • Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
  • VLANPort and tag based VLAN separation
  • Mobiliųjų kvotų kontrolėCustom data limits for both SIM cards
  • WEB filtrasBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
  • Prieigos kontrolėFlexible access control of TCP, UDP, ICMP packets, MAC address filter
  • OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
  • OpenVPN šifravimasDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
  • IPsecIKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256)
  • GREGRE tunnel
  • PPTP, L2TPClient/Server instances can run simultaneously, L2TPv3 support
  • StunnelProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs code
  • DMVPNMethod of building scalable IPsec VPNs
  • SSTPSSTP client instance support
  • ZeroTierZeroTier VPN client support
  • WireGuardWireGuard VPN client and server support
  • ID rangeRespond to one ID in range [1;255] or any
  • Nuotolinės prieigos leidimasAllow access through WAN
  • Pasirinktiniai registraiMODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality
  • Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
  • Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC)
  • Supported baud ratesFrom 300 to 115200
  • Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
  • Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • Duomenų bitų skaičiusFrom 5 to 8
  • Stop bitų skaičius1 or 2
  • ParityNone, Even, Odd
  • FlowNone, RTS/CTS, Xon/Xoff
  • DuplexFull duplex
  • Palaikomos perdavimo spartosFrom 300 to 300000
  • Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
  • Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
  • Duomenų bitų skaičius8
  • Stop bitų skaičius1
  • ParityNone, Even, Odd
  • FlowNone, Xon/Xoff
  • DuplexHalf duplex
  • ProtokolaiHTTP(S), MQTT, Azure MQTT
  • MQTT GatewayAllows sending commands and receiving data from MODBUS Master through MQTT broker
  • Palaikomi režimaiTCP Master, DNP3 Outstation, RTU Master
  • WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
  • FOTAFirmware update from server, automatic notification
  • SSHSSH (v1, v2)
  • SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
  • CallReboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off
  • TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
  • MQTTMQTT Broker, MQTT publisher
  • SNMPSNMP (v1, v2, v3), SNMP Trap
  • JSON-RPCManagement API over HTTP/HTTPS
  • MODBUSMODBUS TCP status/control
  • RMSTeltonika Remote Management System (RMS)
  • Cloud of ThingsAllows monitoring of: Device data, Mobile data, Network info, Availability
  • ThingWorxAllows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
  • CumulocityAllows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength
  • Azure IoT HubCan send device IP, Number of bytes send/received, Temperature, PIN count to AzureIoTHub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type
  • CPUMediatek MIPS 24Kc 580 MHz
  • RAM128 MB, DDR2
  • FLASH saugykla16 MB, SPI Flash
  • WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup, restore point
  • FOTAUpdate FW
  • RMSUpdate FW/configuration for multiple devices at once
  • Nustatymų įsiminimasUpdate FW without losing current configuration
  • Operacinė sistemaRutOS (OpenWrt based Linux OS)
  • KalbosBusybox shell, Lua, C, C++
  • Kūrėjo įrankiaiSDK package with build environment provided
  • GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
  • KoordinatėsGNSS coordinates via WebUI, SMS, TAVL, RMS
  • NMEANMEA 0183
  • NTRIPNTRIP protocol (Networked Transport of RTCM via Internet Protocol)
  • Serverio programinė įrangaSupported server software TAVL, RMS
  • GeotvorosConfigurable multiple geofence zones
  • RS232DB9 connector, full RS232 (with RTS, CTS)
  • RS485RS485 Full Duplex (4 wires) and Half Duplex (2 wires). 300-115200 baud rate
  • Serial functionsConsole, Serial over IP, Modem, MODBUS gateway, NTRIP Client
  • Duomenų perdavimasUSB 2.0
  • NadojimasSamba share, USB-to-serial
  • Išoriniai įrenginiaiPossibility to connect external HDD, flash drive, additional modem, printer
  • Vidinės atminties formatasFAT, FAT32, NTFS
  • Įvestis1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high)
  • Išvestis1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector)
  • ĮvykiaiEmail, RMS, SMS
  • I/O jugglerAllows to set certain I/O conditions to initiate event
  • Jungtys4-pin industrial DC power socket
  • Įeinančios įtampos diapazonas9 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
  • PoE (passive)Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC
  • Energijos sunaudojimas< 2 W idle, < 7 W Max
  • Tinklas4 x RJ45 ports, 10/100 Mbps
  • I/O's2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector (available from HW revision 1600)
  • LED indikatoriai1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED
  • SIM2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
  • Sistemos parametrai1 x 4-pin power connector
  • Input/output1x 10 pin industrial socket for inputs/outputs
  • Antenos2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
  • USB1 x USB A port for external devices
  • RS2321 x DB9 socket
  • RS4851 x 6-pin industrial socket
  • PerkrovimasReboot/User default reset/Factory reset button
  • KorpusasAluminium housing, plastic panels
  • Dydis110 x 50 x 100 mm
  • Svoris287 g
  • MontavimasDIN rail (can be mounted on two sides), flat surface placement
  • Darbinė temperatūra-40 C to 75 C
  • Drėgmė10% to 90% non-condensing
  • IP reitingasIP30
  • ReguliavimasCE/RED, UKCA, CB
  • StandartaiEN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, Draft EN 301 489-19 V2.2.0, Final draft EN 301 489-52 V1.2.0, EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 61000-3-3:2013+A1:2019, EN IEC 61000-3-2:2019
  • ESDEN 61000-4-2:2009
  • RSEN 61000-4-3:2020
  • EFTEN 61000-4-4:2012
  • Atsparumas viršįtampiams (kintamosios srovės maitinimo linija)EN 61000-4-5:2014+A1:2017
  • CSEN 61000-4-6:2009
  • DIPEN IEC 61000-4-11:2020
  • StandartaiEN 300 328 V2.2.2, EN 301 908-1 V13.1.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.1.1, EN 303 413 V1.1.1
