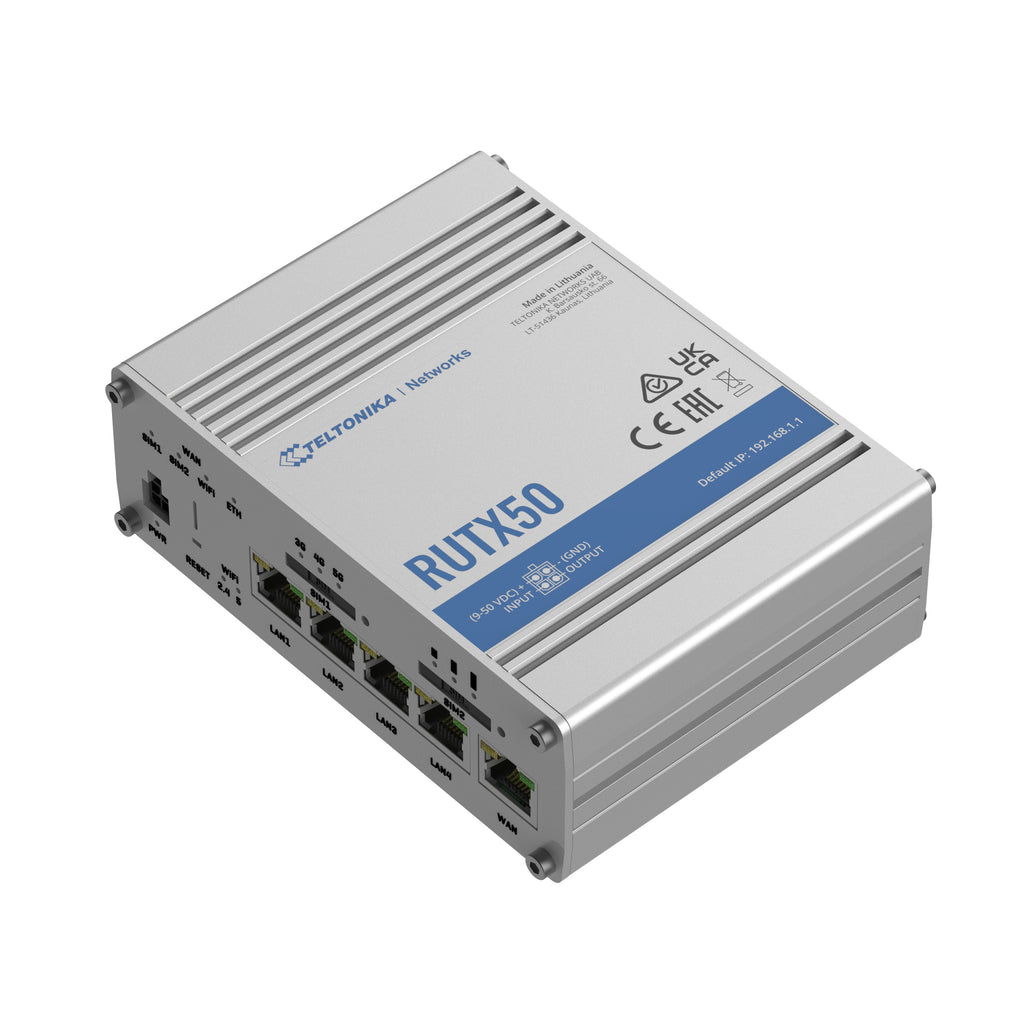

TELTONIKA pramoninis 5G maršrutizatorius LTE RUTX50

• Mobilus ryšys
• Mobilus modulis5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
• StatusasSignal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID.
• SMS/CallSMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities
• USSDSupports sending and reading Unstructured Supplementary Service Data messages
• Juodasis/baltasis sąrašasOperator black/white list
• Grupės valdymasBand lock, Used band status display
• APNAuto APN
• Tilto režimasDirect connection (bridge) between mobile ISP and device on LAN
• PassthroughGateway assigns its mobile WAN IP address to another device on LAN
• Multiple PDNPossibility to use different PDNs for multiple network access and services

• Bevielis ryšys
• Belaidžio ryšio režimas802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
• Wifi apsaugaWPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation
• ESSIDESSID stealth mode
• WiFi naudojotaiUp to 150 simultaneous connections
• Belaidžio ryšio prieeigaCaptive portal (Hotspot), internal/external Radius server, built-in customizable landing page
• Belaidis mesh/roamingWireless mesh (802.11s), fast roaming (802.11r)

• Tinklas
• WAN1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• Internetas
• Interneto protokolaiTCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL)
• MaršrutasStatic routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
• Ryšio stebėjimasPing Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• UgniasienėPort forwards, traffic rules, custom rules
• DHCPStatic and dynamic IP allocation
• DDNSSupported >25 service providers, others can be configured manually
• SSHFSPossibility to mount remote file system via SSH protocol

• Saugumas
• AutentifikavimasPre-shared key, digital certificates, X.509 certificates
• UgniasienėPre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T
• Įsilaužimo prevencijaDDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLANPort and tag-based VLAN separation
• Mobiliųjų kvotų kontrolėSet up custom data limits for SIM >kortelė
• WEB filterBlacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Prieigos kontrolėFlexible access control of TCP, UDP, ICMP packets, MAC address filter

• VPN
• OpenVPNMultiple clients and a server can run simultaneously, 12 encryption methods
• OpenVPN EncryptionDES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
• GRE tunnelGRE Tunnel
• IPsecIKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
• SSTPSSTP client instance support
• STUNNELProxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPNMethod of building scalable IPsec VPNs
• PPTP, L2TPClient/Server services can run simultaneously, L2TPv3 support
• WireGuardWireGuard VPN client and server support
• ZeroTierZeroTier VPN

• Modbus TCP Slave
• ID filtravimasRespond to one ID in range [1;255] or any
• Nuotolinės prieigos leidimasAllow access through WAN
• Pasirinktiniai registraiMODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality

• Modbus TCP master
• Palaikomos funcijos01, 02, 03, 04, 05, 06, 15, 16
• Palaikomi duomenų formatai8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

• MQTT gateway
• GatewayAllows sending commands and receiving data from MODBUS Master through the MQTT broker

• DNP3
• Palaikomi režimaiTCP Master, DNP3 Outstation

• Data iki serverio
• ProtokolaiHTTP(S), MQTT, Azure MQTT, Kinesis

• IoTPlatformos
• Clouds of thingsAllows monitoring of: Device data, Mobile data, Network info, Availability
• ThingWorxAllows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• CumulocityAllows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP
• Azure IoT HubCan send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server

• Stebėjimas ir valdymas

• WEB UIHTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log
• FOTAFirmware update from server, automatic notification
• SSHSSH (v1, v2)
• SMSSMS status, SMS configuration, send/read SMS via HTTP POST/GET
• CALLReboot, Status, Mobile data on/off, Output on/off
• TR-069OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTTMQTT Broker, MQTT publisher
• SNMPSNMP (v1, v2, v3), SNMP trap
• JSON-RPCManagement API over HTTP/HTTPS
• MODBUSMODBUS TCP status/control
• RMSTeltonika Remote Management System (RMS)

• Sistemos Characteristikos
• CPUQuad-core ARM Cortex A7, 717 MHz
• RAM256 MB (100 MB available for userspace)
• FLASH saugykla256 MB (80 MB available for userspace)

• Nustatymai
• WEB UIUpdate FW from file, check FW on server, configuration profiles, configuration backup
• FOTAUpdate FW
• RMSUpdate FW/configuration for multiple devices at once
• Nustatymų įsiminimasUpdate FW without losing current configuration

• Įrangos tinkinimas
• Operacinė sistemaRutOS (OpenWrt based Linux OS)
• KalbosBusybox shell, Lua, C, C++
• Kūrėjo įrankiaiSDK package with build environment provided

• Vietos sekimas
• GNSSGPS, GLONASS, BeiDou, Galileo and QZSS
• KoordinatėsGNSS coordinates via WebUI, SMS, TAVL, RMS
• NMEANMEA 0183
• Serverio programinė įrangaSupports server software: TAVL, RMS
• GeotvorosMultiple configurable geofence zones

• USB
• Duomenų perdavimasUSB 2.0
• NadojimasSamba share, USB-to-serial, Modbus gateway
• Išoriniai įrenginiaiPossibility to connect external HDD, flash drive, additional modem, printer
• Vidinės atminties formatasFAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

• Išėjimai/įėjimai
• Įvestis1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
• Išvestis1 x Digital Output, Open collector output, max output 30 V, 300 mA
• ĮvykiaiSMS, Email, RMS
• I/O jugglerAllows setting certain I/O conditions to initiate event

• Sistemos parametrai
• Jungtys4-pin industrial DC power socket
• Įeinančios įtampos diapazonas9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
• PoE jungtis (pasyvi)Mode B, LAN1 Port, 9 - 50 VDC
• Energijos sunaudojimasIdle: <4 W, Max: <18 W

• Fizinės sąsajos(PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
• Tinklas5 x RJ45 ports, 10/100/1000 Mbps
• I/Os1 x Digital Input, 1 x Digital Output on 4-pin power connector
• LED indikatoriai3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
• SIM2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
• Sistemos parametrai1 x 4-pin DC power connector
• Antenos4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS
• USB1 x USB A port for external devices
• PerkrovimasReboot/User default reset/Factory reset button
• Kita1 x Grounding screw

• Fizinės specifikacijos
• KorpusasAluminum housing
• Dydis132 x 44.2 x 95.1 mm
• Svoris533 g
• MontavimasDIN rail (can be mounted on two sides), flat surface placement

• Darbinė aplinka
• Darbinė temperatūra-40 °C to 75 °C
• Drėgmė10 % to 90 % non-condensing
• IP reitingasIP30
